船舶用手動比例流量制御ブロック 35sfre-Mo20-H3 ウインチ制御弁

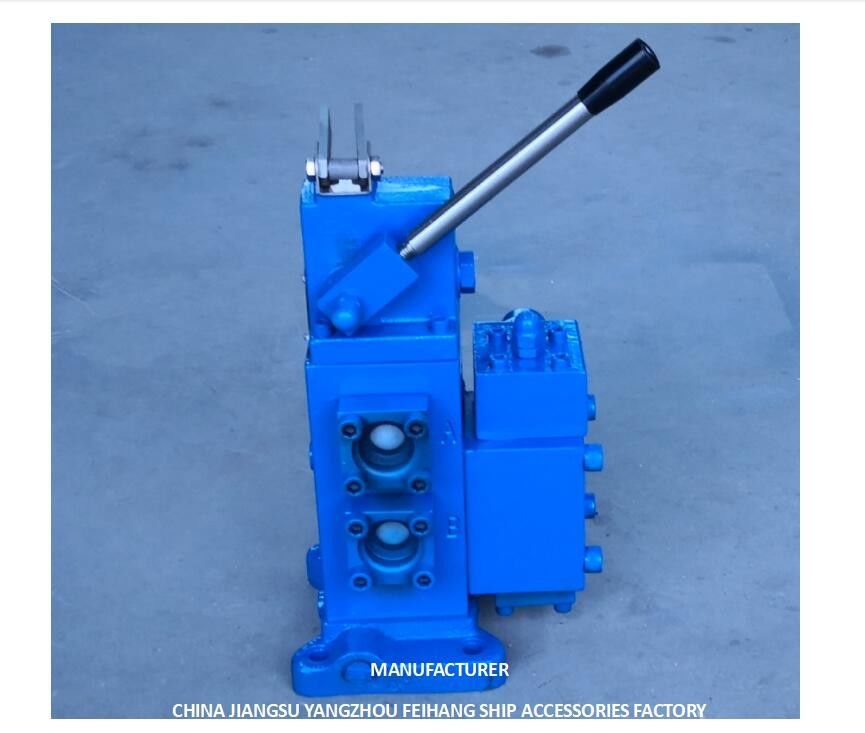

MANUAL PROPORTIONAL FLOW CONTROL BLOCK FOR SHIPS 35SFRE-MO20-H3 WINCH CONTROL VALVE

The performance characteristics of the 35SFRE manual proportional flow directional valve mainly include the following:


1. It has multifunctional features such as commutation, stepless speed regulation, unloading, and overload protection, with a simple structure and reliable operation.
2. Its manual regulation is smooth and sensitive, with synchronous commutation and stepless speed change.
3. This manual proportional flow composite valve M-type center function always matches the load power of the motor (or oil cylinder), which has a more prominent energy-saving effect and is suitable for single valve or multi valve series connection.

At the same time, we can also customize other mid range functions according to the customer's requirements:

Like the principle of a general overflow valve, when the oil motor is running and the load pressure is low, the cone valve is in a closed state due to the action of spring force, and the oil motor operates normally. When the load pressure increases and exceeds the spring force pressed on the cone valve, the cone valve opens, and high-pressure oil flows into port O from port P to protect the oil motor.

Regarding packaging: We all use standard international export packaging

Use and maintenance of 35SFRE TYPE manual proportional flow composite valve:

When we need to replace this 35SRRE manual proportional valve, we encounter that the product identification nameplate has corroded. We can accurately and quickly determine through the following schematic diagram:

If you are a new shipbuilding company and are installing a manual proportional flow composite valve for the anchor or steering gear, you can choose the corresponding model based on the designed flow rate (the selection table is as follows)

WINCH CONTROL BLOCK CONTROL VALVE WINDLASS.pdf

CHINA JIANGSU YANGZHOU FEIHANG SHIP ACCESSORIES FACTORY

COMPETITIVE ADVANTAGE

1. Factory direct sale, competitive price.

2. Customized Service: We can customize, to customers drawings for processing. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: Our Product are strictly complied with China Compulsory Certification. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Delivery Time: after receiving the payment within 24-72 hours to Timely arrange raw materials, processing, production, and timely delivery.
