缶水フィルター 5K-350A S タイプ本体 - 鋳鉄フィルターカートリッジ - ステンレス鋼 Impa 872013 海水フィルター

缶水フィルター 5K-350A S タイプ本体 - 鋳鉄フィルターカートリッジ - ステンレス鋼 Impa 872013 海水フィルター

インパ 872013 海水フィルター Sタイプ海水フィルター

S Type sea water filter

起源の場所:

ヤンチョウ、江蘇、中国

ブランド名:

FEIHANG

証明:

Factory certificate,Pressure test report

モデル番号:

SのLA、LB-TYPE

私達に連絡しなさい

引用を要求しなさい
製品詳細
名前:
マリン缶浄水フィルター
IMPA:
872013
フランジ付きデザイン:
5K または 10K
中央機能:
海水
わずかな直径:
14" - DN250
ボディ材料:
鋳鉄FC200
わずかな圧力:
0.39Mpa
フィルター材料:
ステンレス鋼
タイプ:
直角、直角
支払及び船積みの言葉
最小注文数量
1PCS
価格
USD800-1000/PCS
パッケージの詳細
輸出木箱
受渡し時間
1-2days
供給の能力
20 PC日
製品の説明

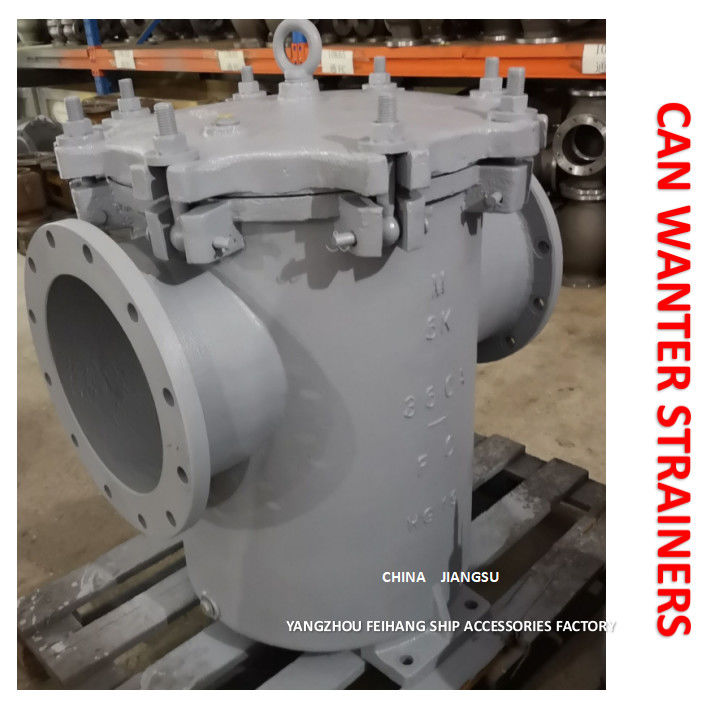

Can Water Filters 5K-350A S-Type Body - Cast Iron Filter Cartridge - Stainless Steel Impa 872013 Sea Water Filters缶水フィルター 5K-350A S タイプ本体 - 鋳鉄フィルターカートリッジ - ステンレス鋼 Impa 872013 海水フィルター 0



Product Description For Marine Can Water Filters-Marine Can Water Strainer:

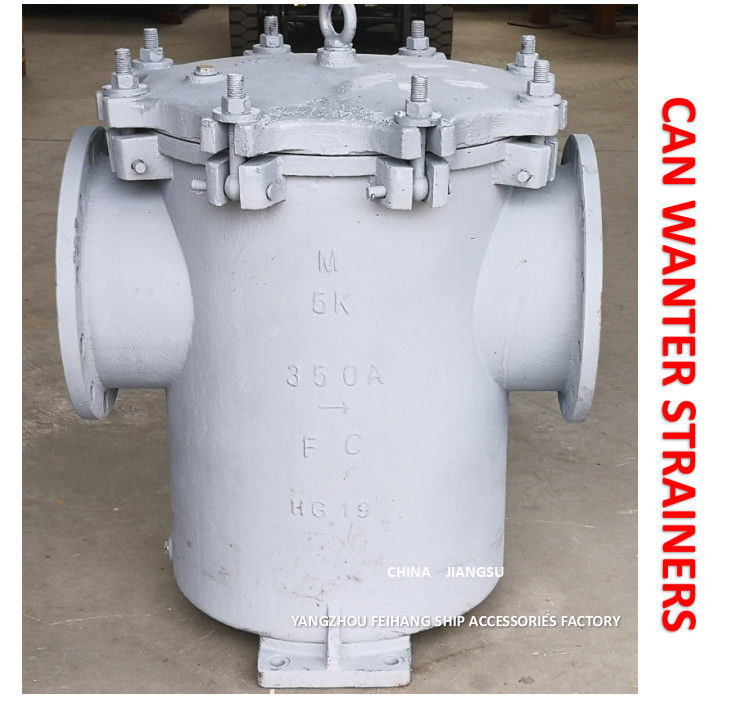

缶水フィルター 5K-350A S タイプ本体 - 鋳鉄フィルターカートリッジ - ステンレス鋼 Impa 872013 海水フィルター 1
We produce two kinds of straining water equipments for different applications: Can Water Striners and Sea Water Striners. Both solutions are made of robust casting steel, designed for water pipelines in ships, and equipped with an inner strainer. In addition, the connection flange size of the products adhere to Japanese Industrial Standards (JIS) 5kgf/cm2 or JIS 10kgf/cm2. With these straining water filters, you can be sure of an efficient and quality output.



Features Marine Can Water Filters-Marine Can Water Strainer:

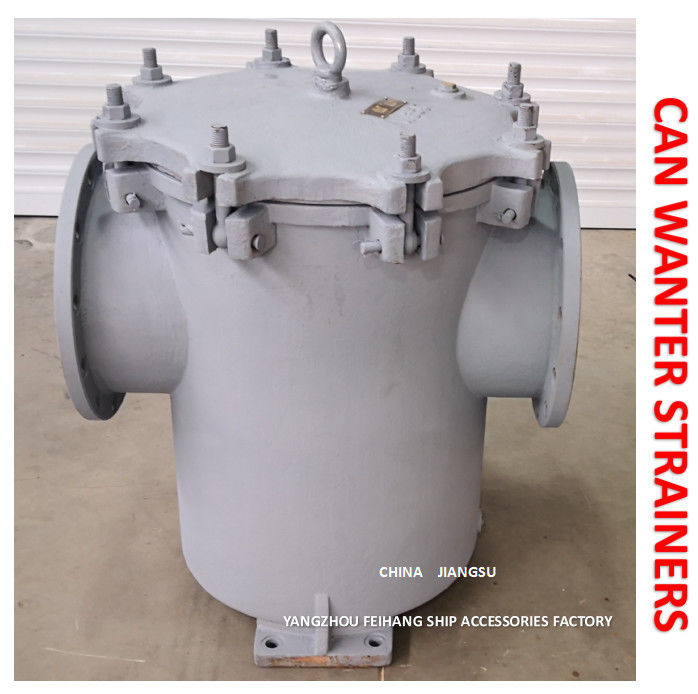

缶水フィルター 5K-350A S タイプ本体 - 鋳鉄フィルターカートリッジ - ステンレス鋼 Impa 872013 海水フィルター 2


  • Product Name: Marine Can Water Filter Or Marine Can Water Strainers
  • Design Standards: JIS F7121
  • Flanged Design: 5K Or 10K
  • Filter Material: Stainless Steel
  • Nominal Diameter: DN25-DN550
  • Features: Simplex Strainers and Marine Sea Water Filters


Technical Parameters For Marine Can Water Filters-Marine Can Water Strainer:

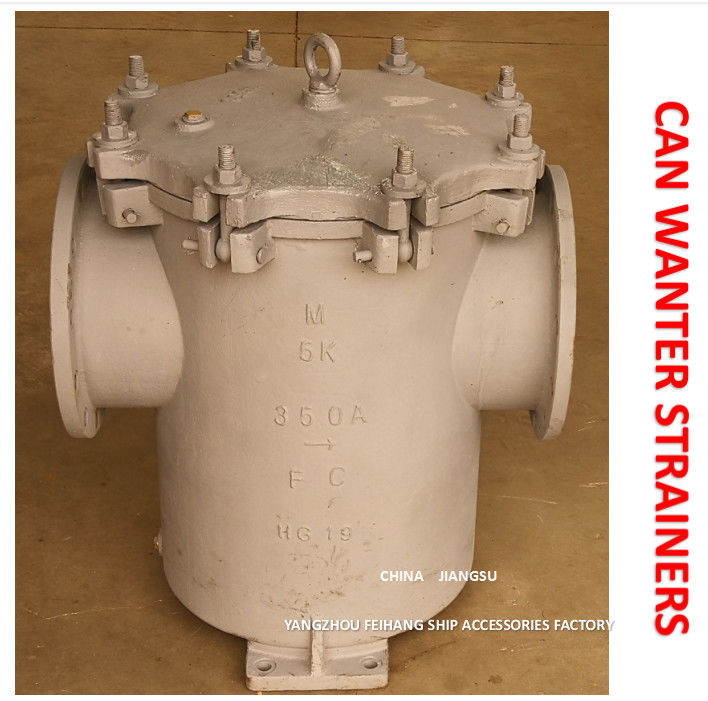

缶水フィルター 5K-350A S タイプ本体 - 鋳鉄フィルターカートリッジ - ステンレス鋼 Impa 872013 海水フィルター 3


Name Marine Can Water Filter
Flanged Design 5K Or 10K
Test Pressure 0.75Mpa
Filtration Accuracy 1-8mm
Country of Origin China
Surface Treatment EPOXY PAINT
Nominal Diameter DN25-DN550
Design Standards JIS F7121
Nominal Pressure 0.39Mpa
Type STRAIGHT-THROUGH, RIGHT-ANGLE


Applications For Marine Can Water Filters-Marine Can Water Strainer:

缶水フィルター 5K-350A S タイプ本体 - 鋳鉄フィルターカートリッジ - ステンレス鋼 Impa 872013 海水フィルター 4


The FEIHANG Marine Can Water Filter is a S, LA, LB-TYPE basket type strainer, specifically designed for sea water filtration. It is made of cast iron FC200 material, with nominal diameter of DN25-DN550 and flanged connection type. This filter can provide high-performance filtration of sea water, with a basket type strainers that can effectively remove impurities from the water. Whether for commercial or industrial applications, this filter can provide a reliable and economical solution for sea water filtration.


Customization For Marine Can Water Filters-Marine Can Water Strainer:

缶水フィルター 5K-350A S タイプ本体 - 鋳鉄フィルターカートリッジ - ステンレス鋼 Impa 872013 海水フィルター 5


MARINE SEA WATER FILTER
Brand Name: FEIHANG
Model Number: S,LA,LB-TYPE
Place of Origin: Yangzhou, Jiangsu, China
SURFACE TREATMENT: EPOXY PAINT
Name: Marine Can Water Filter
Filter Material: Stainless Steel
Flanged Design: 5K Or 10K
Body Material: Cast Iron FC200
MARINE SEA WATER FILTER - FEIHANG offers a range of simplex strainers and stainless steel filters for marine sea water filtration. Our filters are made with cast iron FC200 and stainless steel. The flanged design is available in either 5K or 10K. The filter surface is treated with epoxy paint for added durability and protection.


HOW TO ORDER FOR THE MARINE CAN WATER FITLERS

You can choose according to the material manual IMPA

缶水フィルター 5K-350A S タイプ本体 - 鋳鉄フィルターカートリッジ - ステンレス鋼 Impa 872013 海水フィルター 6



CAN WATER STRAINERS FOR CASTING-JIS F7121.pdf

Support and Services For Marine Can Water Filters-Marine Can Water Strainer:



Marine Can Water Filter Technical Support and Service

We are dedicated to providing our customers with the highest quality water filters available. Our Marine Can Water Filter includes technical support and service to ensure its longevity and performance.

  • We offer a 1-year warranty on all Marine Can Water Filter components.
  • We have a team of certified technicians to answer any technical questions about the filter.
  • We offer regular maintenance and servicing of the filter to keep it in optimal condition.
  • Our customer service team is available 24/7 to answer any questions or address any concerns.
  • We provide free shipping and returns on all Marine Can Water Filter orders.


Packing and Shipping For Marine Can Water Filters-Marine Can Water Strainer:


Packaging and Shipping for Marine Can Water Filter

The Marine Can Water Filter will be shipped in a sturdy cardboard box measuring 15.75" x 11.5" x 11.75". The box has been selected to protect the filter during shipping. The filter is secured in the box with bubble wrap and foam padding.
We use a variety of shipping methods to ensure your order is delivered quickly and safely. We use USPS Priority Mail, FedEx Ground, and UPS Ground. All orders are shipped within 1-2 business days of payment.



FAQ:

The brand name is FEIHANG and the model number is S,LA,LB-TYPE.

The Marine Can Water Filter is manufactured in Yangzhou, Jiangsu, China.

The Marine Can Water Filter can filter both saltwater and freshwater.

The Marine Can Water Filter has a flow rate of up to 2.5 liters per minute.

The Marine Can Water Filter has an average filter life of up to 6 months.
