起源の場所:
ヤンチョウ、江蘇、中国
ブランド名:
FEIHANG
証明:
Factory certificate, test report, material report
モデル番号:
FHタイプ
私達に連絡しなさい

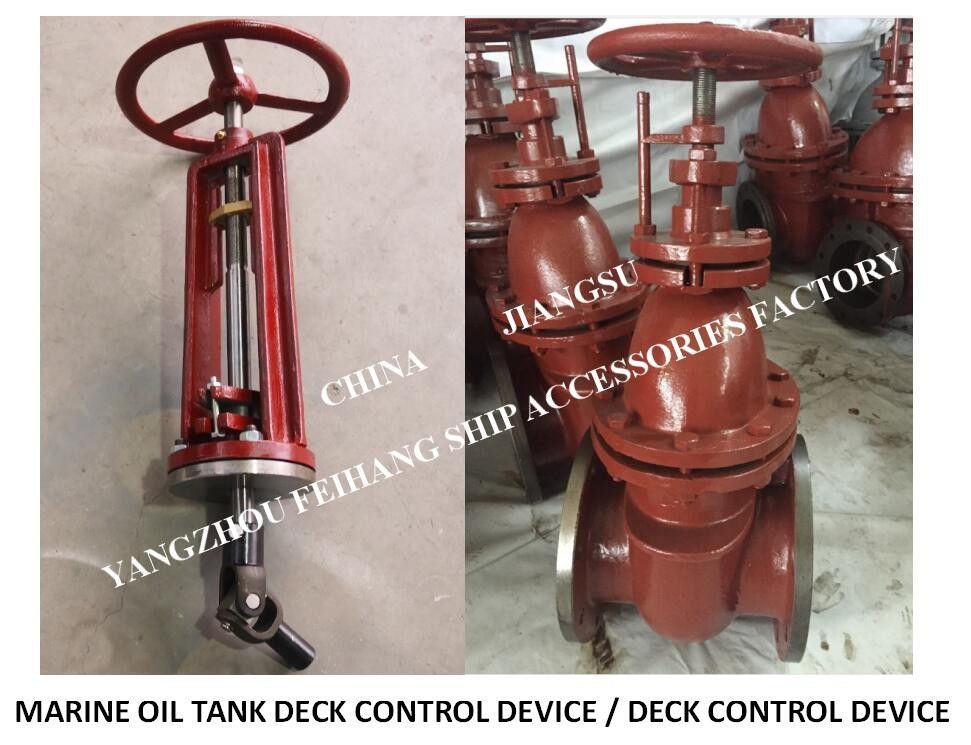

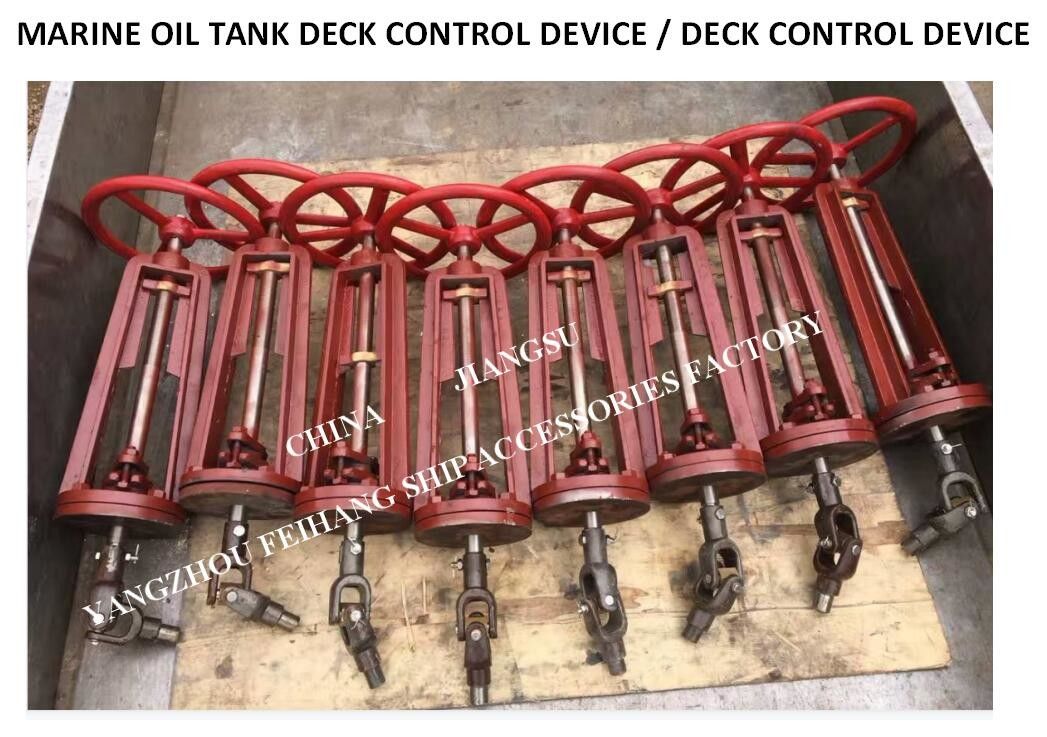

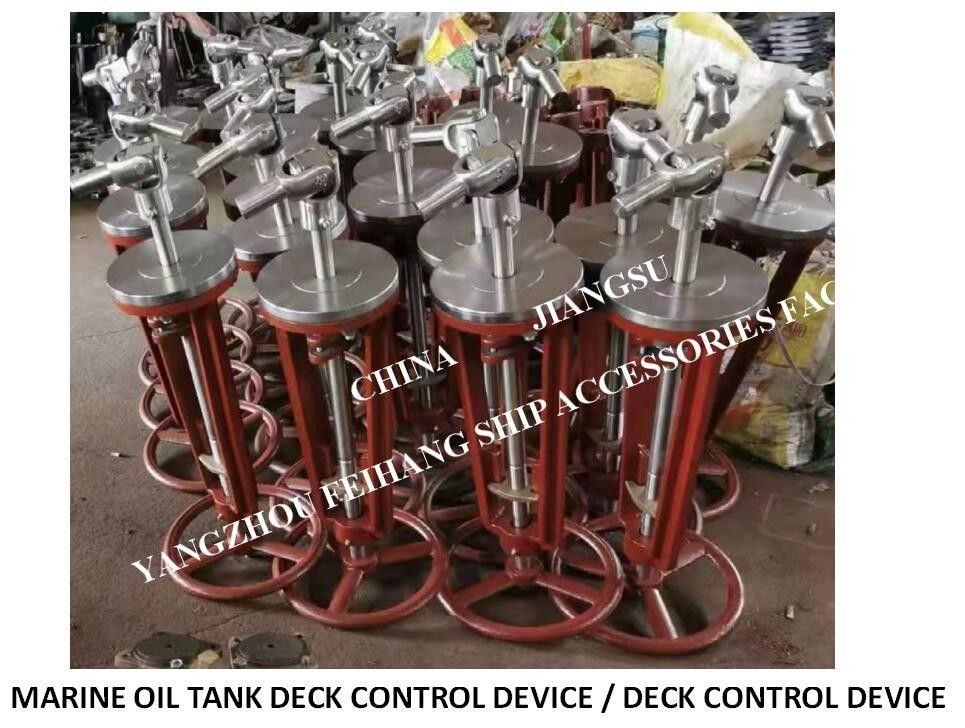

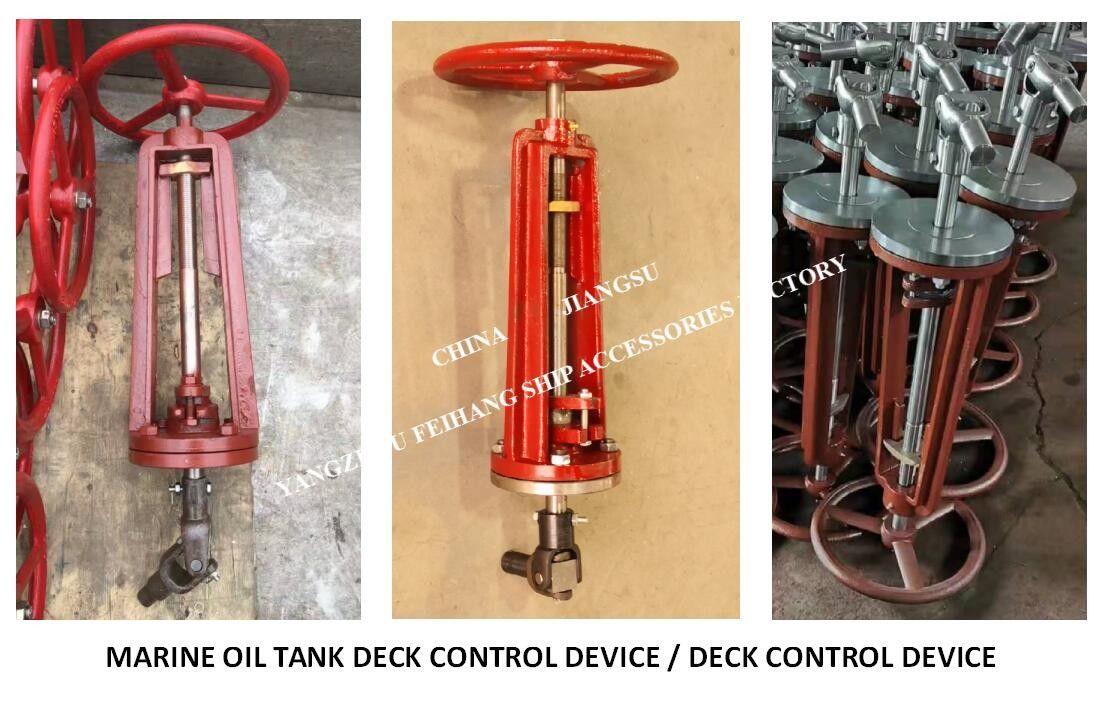

The CB693-75 Marine Oil Tank Deck Control Device/Deck Control Device is designed for use with DN150-DN350 oil tanker flange cast steel gate valves. It has been approved according to the Shipbuilding Rules of CB/T693-75 “Ship Non-Return Valve for Oil Tank, guaranteeing that it is fit for purpose.
The Device has been engineered with an indicator device/an indicator device to show the open/close status of the valve, as well as a safety interlock/ a safety interlock device that helps to prevent accidental openings caused by the pressure. This offers an increased level of protection as well as peace of mind.
The CB693-75 Oil Tank Deck Control Device/Deck Control Head Technical Agreement specifies the basic materials and parts required for its construction, as shown in the figure below. This includes the bracket and handwheel, which can be replaced with cast steel ZG25; also the bushing of the operator, filler seat, and intermediate bracket are allowed to be switched for nylon MC. It is specified that there should be no burrs on the surface of the bracket and handwheel.
Also, the travel indicator of the deck operator should be adjusted according to the actual situation after on-site installation, and the position mark of the indicator needle should be painted with dark paint. Afterwards, the deck control device should be inspected and accepted by the inspection department of the manufacturer, and a certificate of conformity should be issued. Finally, the deck control device must be accurately marked with a number 5 character on the seat frame, as well as the manufacturer, product model, and production year.
| Parameter | Value |
|---|---|
| Design standards | CB693-75 |
| Working pressure | 1.0-1.5Mpa |
| Product Name | MARINE OIL TANK DECK CONTROL DEVICE |
| Application | Marine |
| Size | So-24/So-27/So-32 |
| Model | FH |
| Manipulating Objects | Gate Valve |
| Material | Stainless Steel, Cast Steel |
The CB693-75 is a marine oil tank deck control device with universal joint. It is mainly used for deck vessels. According to the square head side length of the vessel, it has three types:
We offer customized service for Marine Spare Part, Brand Name: FEIHANG, Model Number: FH-type. This product is from Yangzhou, Jiangsu, China, comes with Factory certificate, test report, material report. Minimum Order Quantity is 1pcs, the price should be discussed personally. The packaging is export packaging, delivery time is 1-2days. Payment Terms is 100% prepaid, Supply Ability is 100pcs/days. Design standards is CB693-75, material is Stainless Steel, Cast Steel, application range is Marine, manipulating objects is Gate Valve. The product name is MARINE OIL TANK DECK CONTROL DEVICE. Especially, we emphasize the key words: GUTTER PLUG, Marine deck drainage hole plug, Marine deck drainage hole bolts.
We provide technical support and service for Marine Spare Parts. Our service includes:
We are committed to providing reliable and timely service to our customers. If you have any questions or need assistance with Marine Spare Parts, please contact us.
Marine Spare Part Packaging and Shipping:
Packaging: Marine spare parts are placed in sealed plastic bags or boxes, and then put into cartons for protection.
Shipping: The marine spare parts are shipped in a timely manner using reliable express services that provide tracking information.
