起源の場所:
ヤンチョウ、江蘇、中国
ブランド名:
FEIHANG
証明:
Factory certificate, test report, material report
モデル番号:
FH
送信

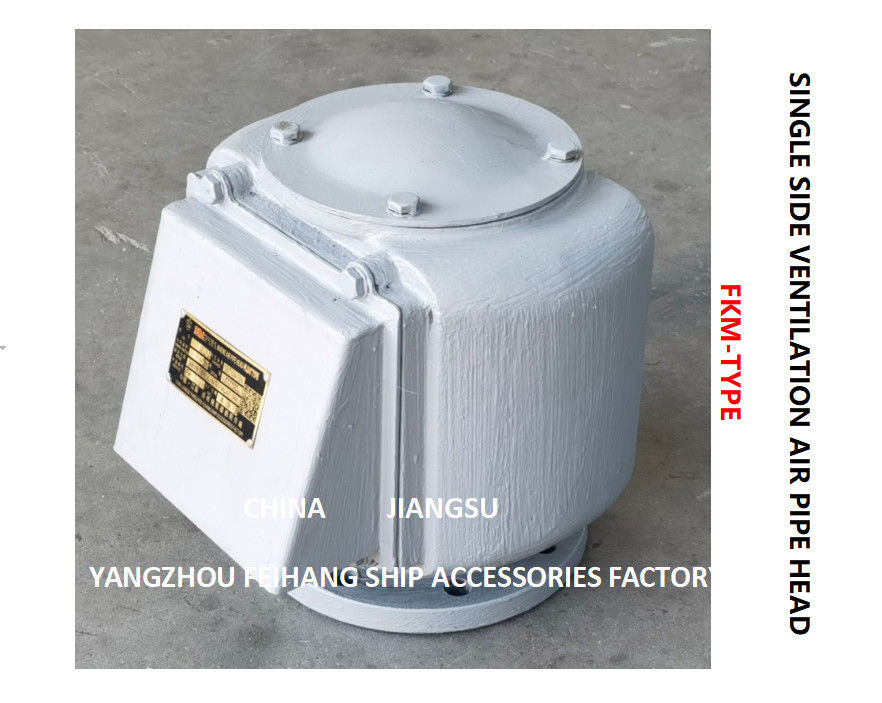

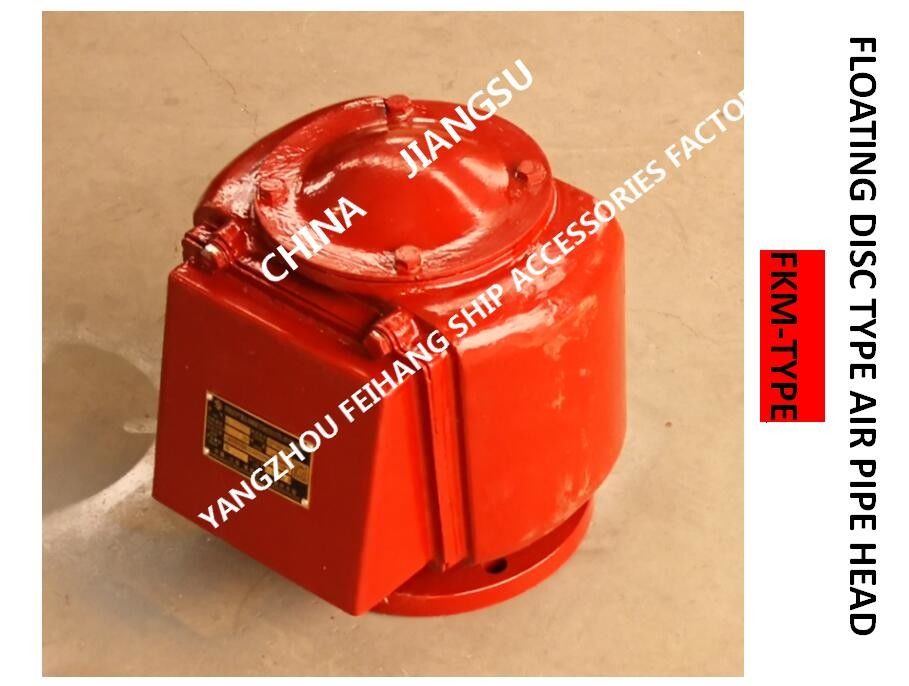

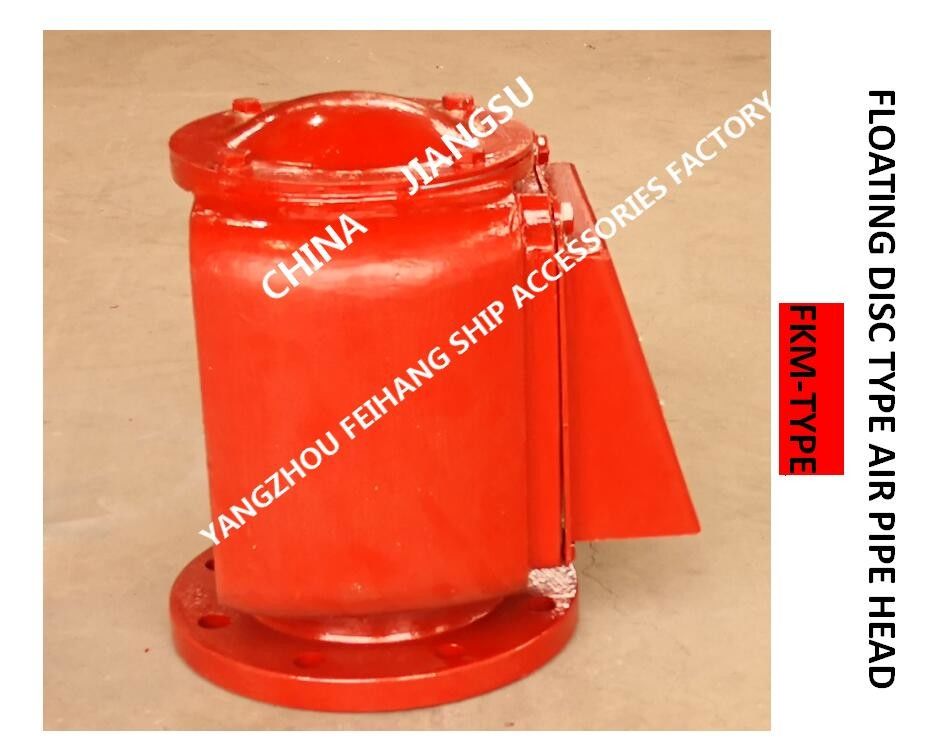

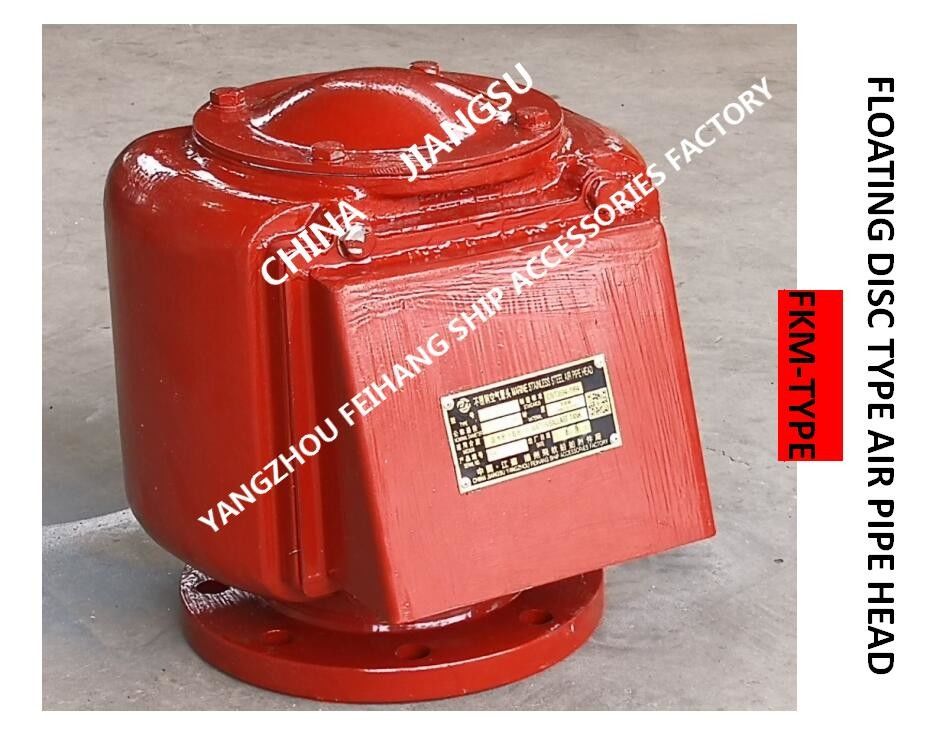

The FKM type float type air pipe head is designed for special ship types due to the limitations of deck installation. It is suitable for DN50-DN250 and both sides are ventilated on the DN300-DN450A. And with the accompanied FKM type float type breathable cap, it creates a perfect combination.
The float type air pipe head allows for tight packing within a limited space, easy installation on the ship's deck, as well as effective hydrometeorological protection and easy drainage. In short, this air pipe head is an ideal choice for those deck installation applications requiring precision and outstanding performance.
Pursuant to the ship industry standard CB/T3594-1994, this FKM type single-sided vent cap air pipe head is primarily composed of a body, a stainless steel float, a side cover, a sealing rubber ring and various fasteners.
The body of the vent cap is the main component and provides structural support to the other parts. Its size determines the size of the whole product, ultimately affecting the performance of the device. The float of the vent cap is made of stainless steel, a material that is already proven to be both lightweight and corrosion resistant.
The side cover and sealing rubber ring of the vent cap creates a waterproof seal that prevents entry of foreign substances. Various fasteners are also needed to secure all the components together.
| Item | Details |
|---|---|
| Surface Treatment | Epoxy Paint |
| Size | 50-500mm |
| Application | Marine Tank |
| Floater Material | SUS316L |
| Characteristic | DN50-DN200 One Side Breathable |
| Pressure | 0.3Mpa |
| Product Name | Marine FKM Air Vent Head |
| Type | FLOAT TYPE |
| Design standards | CB/T3594 |
| Body Material | Ductile Iron |
According to the layout of each cabin of the ship, the air pipe head of this FKM oil-water tank can be extended as follows:
FEIHANG marine air vent head is specially designed for marine tank, with brand name FH, CB/T3594 design standard, Ductile Iron material and 0.3Mpa pressure. It is available in size 50-500mm and 100pcs/days supply ability. Factory certificate, test report, material report are all available for the product. Export packaging is used for delivery, 1-2days delivery time, payment term is 100% prepaid. Minimum order quantity is 1pcs, and price can be discussed personally.
We offer a complete range of services to ensure that your Marine Air Vent Head is running optimally. Our knowledgeable team of experts are available to answer any technical questions you may have about your product. We provide the following services:
If you encounter any problems or would like to learn more about our services, please contact us at your earliest convenience.
When shipping Marine Air Vent Head, it is important to remember to package it in a way that will ensure that it arrives at its destination safely. Here are some tips to help you package and ship the Marine Air Vent Head properly:
A: The Brand Name of this product is FEIHANG.
A: The Model Number of this product is FH.
A: This product is made in Yangzhou, Jiangsu, China.
A: We have Factory certificate, test report, material report for this product.
A: The Minimum Order Quantity is 1pcs.
